This is my attempt to catalog information related to the MARTA's developer feeds – both for my own use and for the benefit of other programmers.
My personal opinion is that the community would be better served if this were hosted on the MARTA website, so I will happily turn over these files – at no charge, of course – if they give MARTA a head start to hosting a more detailed set of developer pages. (But I would appreciate attribution for my work.)
Please be aware that I am not affiliated with MARTA. Contact information
for MARTA can be found on the agency's website at:
http://www.itsmarta.com/Contact-us.aspx
If you would like to contact me about this resource (and please feel welcome to do so, especially if you find any errors I need to correct), my e-mail address is joe@joederose.us.
MARTA has a real-time bus feed that provides data in XML (via a SOAP call) and JSON (both via SOAP and via a RESTful call). MARTA wants to be aware of any developers using the real-time feed, so I am not providing links to it here; instead, you will need to submit a request on the MARTA developer page at http://www.itsmarta.com/brd-request-form.aspx. After you submit that form, you will immediately be taken to a page with instructions on using the system. Since those instructions are a bit overwhelming on the first visit, here's what it boils down to for access to the (easier and more complete) RESTful feed:
Once you have the URL, you can retrieve information as follows:
URL | Result |
---|---|
http://.../GetAllBus | Gets the results for all active buses on all routes |
http://.../GetBusByRoute/{Route} | Replace "{Route}" with a route number (e.g., "3" or "99"). Gets the results for all buses on the selected route. |
This will return an array of JSON objects (one JSON object per bus), that looks like this:
[{"ADHERENCE":"0","BLOCKID":"2","BLOCK_ABBR":"1-2","DIRECTION":"Southbound","LATITUDE":"33.7562339","LONGITUDE":"-84.3918858","MSGTIME":"4\/7\/2013 12:42:43 PM","ROUTE":"1","STOPID":"904680","TIMEPOINT":"Luckie St & North Ave.","TRIPID":"3698436","VEHICLE":"2981"},{"ADHERENCE":"-3","BLOCKID":"1","BLOCK_ABBR":"1-1","DIRECTION":"Northbound","LATITUDE":"33.7889023","LONGITUDE":"-84.4262254","MSGTIME":"4\/7\/2013 12:51:21 PM","ROUTE":"1","STOPID":"901556","TIMEPOINT":"Huff Rd & Howell Mill","TRIPID":"3713428","VEHICLE":"2853"}]
Following, as best I understand them, are the meanings for the field names:
Field Name | Notes |
---|---|
ADHERENCE | 0 = on time; negative numbers show the number of minutes the bus is late; positive numbers show the number of minutes the bus is early. |
BLOCKID | (I don't yet know what this means.) |
BLOCK_ABBR | (I don't yet know what this means.) |
DIRECTION | Direction of the bus. This information is usually accurate – but it does not match any field in the GTFS data (see below). this is less of a problem than it used to be, as MARTA is now providing the TRIPID field in the real-time data. |
LATITUDE | Latitude in decimal WGS 84 format. |
LONGITUDE | Latitude in decimal WGS 84 format. |
MSGTIME | This is not the time that the bus most recently reported its location, but rather the time that it most recent passed a time-point stop. There is no information in the GTFS data (see below) about which stops are time-point stops – but that information can be found on the online bus schedules on the MARTA website. |
ROUTE | The bus number. Correlates to stops.route_short_name in the GTFS data (see below). |
STOPID | The stop code for the most recent time-point stop. Correlates to stops.stop_id in the GTFS data. |
TIMEPOINT | Plain text giving the location of the most recent time-point stop. |
TRIPID | Correlates to trips.trip_id in the GTFS data. |
VEHICLE | The bus number. (Does not correlate to any field in the GTFS data, but is nonetheless a useful value as it is visible to riders.) |
The MARTA GTFS feed is available on the
MARTA website at:
http://www.itsmarta.com/marta-developer-resources.aspx
This feed was designed for Google Transit, and meets Google's specifications
as outlined at
https://developers.google.com/transit/gtfs/reference

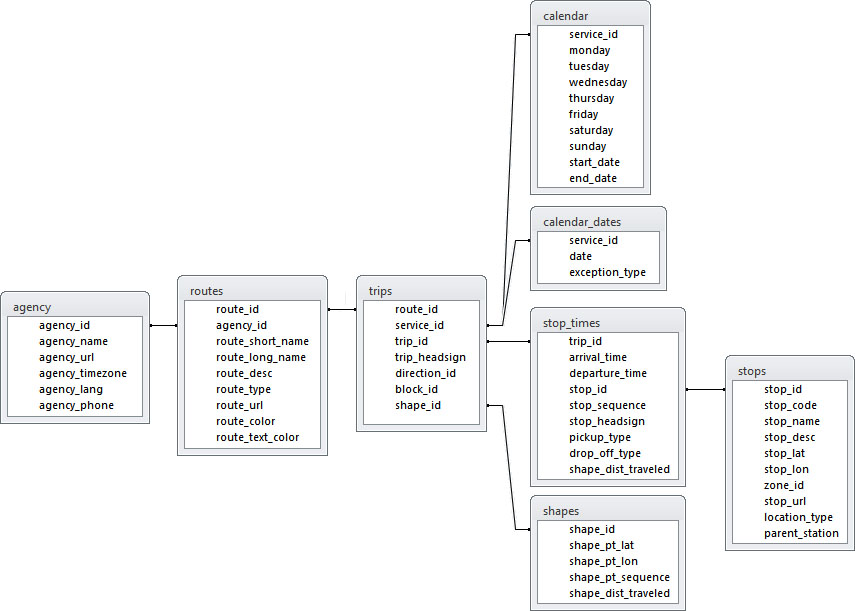

Following is a UML diagram of the table relationships in MARTA's GTFS feed. I included calendar.txt and calendar_dates.txt on this example to show the field relationship, but I think a query that incorporates these tables would be needlessly complex. For my own work, I plan to set up separate function calls to get the appropriate service_id from those tables, and simply pass in the resultant value as a parameter in the WHERE clause of the query.
Following are the tables provided in the MARTA GTFS feeds. Please note the following:
This table provides information about the transit agency (in our case, MARTA).
Field Name | Data Type | Notes |
---|---|---|
agency_id | text(5) | |
agency_name | text(44) | |
agency_url | text(23) | |
agency_timezone | text(16) | |
agency_lang | text(2) | |
agency_phone | text | Not used by MARTA in the current data set. |
agency_id | agency_name | agency_url | agency_timezone | agency_lang | agency_phone |
---|---|---|---|---|---|
MARTA | Metropolitan Atlanta Rapid Transit Authority | http://www.itsmarta.com | America/New_York | en |
This table provides information about specific transit stops and stations.
Field Name | Data Type | Notes |
---|---|---|
stop_id | integer | This is the numeric code that is also displayed as the "Stop Number" on MARTA's MyCommute pages. |
stop_code | integer | |
stop_name | text(35) | |
stop_desc | text(81) | Google instructs that this should be a description of the stop with "useful, quality information" to distinguish it from stop_name; MARTA does not seem to be using it to its potential, and in some cases leaves it blank. Dropped by MARTA in the data feed of March 7, 2013. |
stop_lat | float | Latitude in decimal WGS 84 format. |
stop_lon | float | Longitude in decimal WGS 84 format. |
zone_id | integer | Not used by MARTA in the current data set. Dropped by MARTA in the data feed of March 7, 2013. |
stop_url | text | Not used by MARTA in the current data set. Dropped by MARTA in the data feed of March 7, 2013. |
location_type | integer | Not used by MARTA in the current data set. Dropped by MARTA in the data feed of March 7, 2013. |
parent_station | integer | Not used by MARTA in the current data set. Dropped by MARTA in the data feed of March 7, 2013. |
stop_id | stop_code | stop_name | stop_desc | stop_lat | stop_lon |
---|---|---|---|---|---|
99174 | 900992 | MARTIN LUTHER KING J DR@RACINE ST | 0 MARTIN LUTHER KING J & RACINE | 33.75142 | -84.4413 |
99176 | 900934 | MARTIN LUTHER KING J DR@GORDON TER | 0 MARTIN LUTHER KING J & GORDON | 33.75101 | -84.4427 |
99178 | 900935 | MARTIN LUTHER KING J@1444 | 33.75338 | -84.4349 | |
99186 | 900936 | BARFIELD AVE SW@WINGATE ST SW | 0 BARFIELD AVE SW & WINGATE ST SW | 33.74889 | -84.4617 |
99188 | 900937 | BARFIELD AVE SW @ LARCHWOOD ST SW | 0 BARFIELD AVE SW & LARCHWOOD ST SW | 33.74764 | -84.4617 |
This table provides information about specific transit stops and stations.
Field Name | Data Type | Notes |
---|---|---|
route_id | integer | |
agency_id | text | Probably intended to be an integer like the other "_id" fields, but assigned a text value in agency.txt, so I made it a text value here even though it is not used. Not used by MARTA in the current data set. Dropped by MARTA in the data feed of March 19, 2013. |
route_short_name | text(5) | Must be imported as text rather than as an integer because the heavy rail line designations in this field use the line colors (see data sample below) |
route_long_name | text(35) | |
route_desc | text | Not used by MARTA in the current data set. |
route_type | integer | 3 = bus; 1 = subway/metro; see the Google specification for more information. |
route_url | text | Not used by MARTA in the current data set. |
route_color | text(6) | Hexadecimal triplet representing RGB color. Cannot be more than 6 characters. |
route_text_color | text(6) | Hexadecimal triplet representing RGB color. Cannot be more than 6 characters. Not used by MARTA in the current data set. |
route_id | agency_id | route_short_name | route_long_name | route_desc | route_type | route_url | route_color | route_text_color |
---|---|---|---|---|---|---|---|---|
7479 | 1 | Centennial Oly. Park/Coronet Way | 3 | FFFF00 | ||||
7480 | 2 | Ponce de LeonĀ Ave/Moreland Ave | 3 | 00FF00 | ||||
7481 | 3 | Martin Luther King Jr. Dr/Auburn Av | 3 | 008080 | ||||
7574 | BLUE | BLUE-East/West Line | 1 | 00FFFF | ||||
7576 | GOLD | GOLD-Northeast Doraville Line | 1 | FFFF00 |
This table provides information about specific transit trips (meaning from one end-point of a route to the other).
Field Name | Data Type | Notes |
---|---|---|
route_id | integer | |
service_id | integer | Relates to the service_id field in the calendar.txt file; essentially, though: 3 = Saturday, 4 = Sunday, and 5 = weekday |
trip_id | integer | |
trip_headsign | text(64) | |
direction_id | integer | Must be either 0 or 1; see my direction_id page for information on MARTA's implementation. |
block_id | integer | |
shape_id | integer |
route_id | service_id | trip_id | trip_headsign | direction_id | block_id | shape_id |
---|---|---|---|---|---|---|
7480 | 3 | 2069608 | 2 NORTH AVE STA | 0 | 825129 | 48064 |
7480 | 3 | 2069609 | 2 NORTH AVE STA | 0 | 825129 | 48064 |
7480 | 3 | 2069610 | 2 NORTH AVE STATION VIA NORTH AVE | 0 | 825130 | 48063 |
7480 | 3 | 2069642 | 2 PONCE DE LEON - CANDLER PARK STA | 1 | 825129 | 48066 |
7480 | 3 | 2069643 | 2 DECATUR STATION VIA NORTH AVE | 1 | 825130 | 48065 |
This table provides information about stop times.
Field Name | Data Type | Notes |
---|---|---|
trip_id | integer | |
arrival_time | text(8) | Cannot be more than 8 characters. Looks like it should be imported as a time field, but the Google specification of showing times after midnight as 24:xx:xx, 25:xx:xx, 26:xx:xx, etc. may cause database errors; a better approach is to import it as text and parse it into hours, minutes, and seconds (some techniques are shown below). |
departure_time | text(8) | Cannot be more than 8 characters. Looks like it should be imported as a time field, but the Google specification of showing times after midnight as 24:xx:xx, 25:xx:xx, 26:xx:xx, etc. may cause database errors; a better approach is to import it as text and parse it into hours, minutes, and seconds (some techniques are shown below). In the MARTA GTFS feed, arrival_time and departure_time are always the same. |
stop_id | integer | |
stop_sequence | integer | |
stop_headsign | text | Not used by MARTA in the current data set. Dropped by MARTA in the data feed of February 6, 2013. |
pickup_type | integer | 0 = regular pickup; 1 = no pickup (of which there are a handful of examples in the MARTA GTFS feed). Dropped by MARTA in the data feed of February 6, 2013. |
drop_off_type | integer | 0 = regular drop off; 1 = no drop off (of which there are a handful of examples in the MARTA GTFS feed). Dropped by MARTA in the data feed of February 6, 2013. |
shape_dist_traveled | float | In kilometers. Unlike with the similar field in shapes.txt, MARTA leaves the field null, rather than displaying 0, at the beginning of the route. Dropped by MARTA in the data feed of February 6, 2013. |
trip_id | arrival_time | departure_time | stop_id | stop_sequence |
---|---|---|---|---|
2069593 | 5:56:00 | 5:56:00 | 84901 | 1 |
2069593 | 5:56:36 | 5:56:36 | 84386 | 2 |
2069593 | 5:56:56 | 5:56:56 | 105302 | 3 |
2069593 | 5:57:15 | 5:57:15 | 84384 | 4 |
2069593 | 5:57:32 | 5:57:32 | 84380 | 5 |
Parsing the arrival_time and departure_time fields into hour, minute, and second values is very straightforward. Most languages have a mechanism for manipulating strings based on regular expressions, and the VBA (VisualBasic for Applications) examples below illustrate a pretty common framework for parsing the information in languages without support for regular expressions. These techniques will return a text value; likely you'll want to convert it to a numerical value using the appropriate function in the language you're using – usually some variation of val(), value(), Integer() or parseInt().
To Get | Regular Expression Empty String Replacement |
Regular Expression Backreference Replacement |
VBA |
---|---|---|---|
Hour | departure_time.replace( /:\d+:\d+$/, "" ) | departure_time.replace( /(\d+):(\d+):(\d+)/, "$1" ) | Left([departure_time],Len([departure_time])-6) |
Minute | departure_time.replace( /^\d+:|:\d+$/g, "" ) | departure_time.replace( /(\d+):(\d+):(\d+)/, "$2" ) | Left(Right([departure_time],5),2) |
Second | departure_time.replace( /^\d+:\d+:/, "" ) | departure_time.replace( /(\d+):(\d+):(\d+)/, "$3" ) | Right([departure_time],2) |
This table provides information about the routine schedule.
Field Name | Data Type | Notes |
---|---|---|
service_id | integer | Essentially 3 = Saturday, 4 = Sunday, and 5 = weekday |
monday | integer | 0 = no service on Monday; 1 = service on Monday |
tuesday | integer | 0 = no service on Tuesday; 1 = service on Tuesday |
wednesday | integer | 0 = no service on Wesnesday; 1 = service on Wednesday |
thursday | integer | 0 = no service on Thursday; 1 = service on Thursday |
friday | integer | 0 = no service on Friday; 1 = service on Friday |
saturday | integer | 0 = no service on Saturday; 1 = service on Saturday |
sunday | integer | 0 = no service on Sunday; 1 = service on Sunday |
start_date | text(8) | Cannot be more than 8 characters. Date in YYYYMMDD format. |
end_date | text(8) | Cannot be more than 8 characters. Date in YYYYMMDD format. |
service_id | monday | tuesday | wednesday | thursday | friday | saturday | sunday | start_date | end_date |
---|---|---|---|---|---|---|---|---|---|
3 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 20120825 | 20131214 |
4 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 20120825 | 20131214 |
5 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 20120825 | 20131214 |
This table provides information about interruptions in the schedule (usually for holiday service).
Field Name | Data Type | Notes |
---|---|---|
service_id | integer | |
date | text(8) | Cannot be more than 8 characters. Date in YYYYMMDD format. |
exception_type | integer | 1 = service added for a date; 2 = service removed for a date. When weekday service is changed to Saturday or Sunday service for a holiday, there are two lines for the date in question: one to remove the weekday service (exception_type = 2; service_id = 5) and another to add the appropriate alternate service (exception_type = 1; service_id = 3 or 4) |
service_id | date | exception_type |
---|---|---|
4 | 20120903 | 1 |
5 | 20120903 | 2 |
4 | 20121122 | 1 |
5 | 20121122 | 2 |
3 | 20121123 | 1 |
5 | 20121123 | 2 |
This table provides information for drawing a map of a route.
Field Name | Data Type | Notes |
---|---|---|
shape_id | integer | |
shape_pt_lat | float | Latitude in decimal WGS 84 format. |
shape_pt_lon | float | Longitude in decimal WGS 84 format. |
shape_pt_sequence | integer | |
shape_dist_traveled | float | In kilometers. Unlike with the similar field in stop_times.txt, MARTA displays 0 rather than null at the beginning of the route. Dropped by MARTA in the data feed of February 6, 2013. |
shape_id | shape_pt_lat | shape_pt_lon | shape_pt_sequence |
---|---|---|---|
48058 | 33.78635 | -84.4117 | 1 |
48058 | 33.78777 | -84.41182 | 2 |
48058 | 33.786349 | -84.411699 | 3 |
48058 | 33.785799 | -84.41168 | 4 |
48058 | 33.784229 | -84.41191 | 5 |
